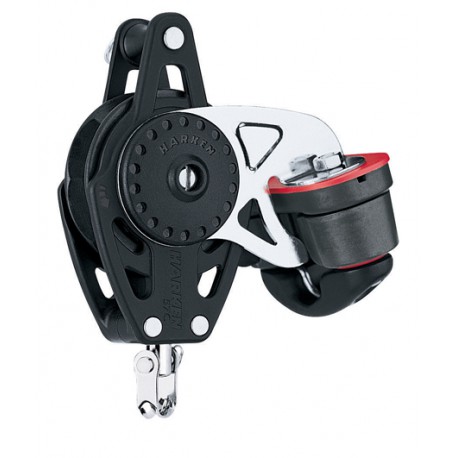

Block single Carbo Ratchamatic with swivel, becket and cam cleat 75mm
Harken
Article number : HK2684
The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.
Footnote
Maximum working loads and breaking loads for blocks based on cam strengths.
Sheave Ø (mm) 75 mm
Length (mm) 165 mm
Weight (g) 440 g
Shackle pin Ø (mm) 6 mm
Maximum line Ø (mm) 12 mm
Maximum working load (kg) 272 kg
Breaking load (kg) 680 kg
Holding power 15:1
