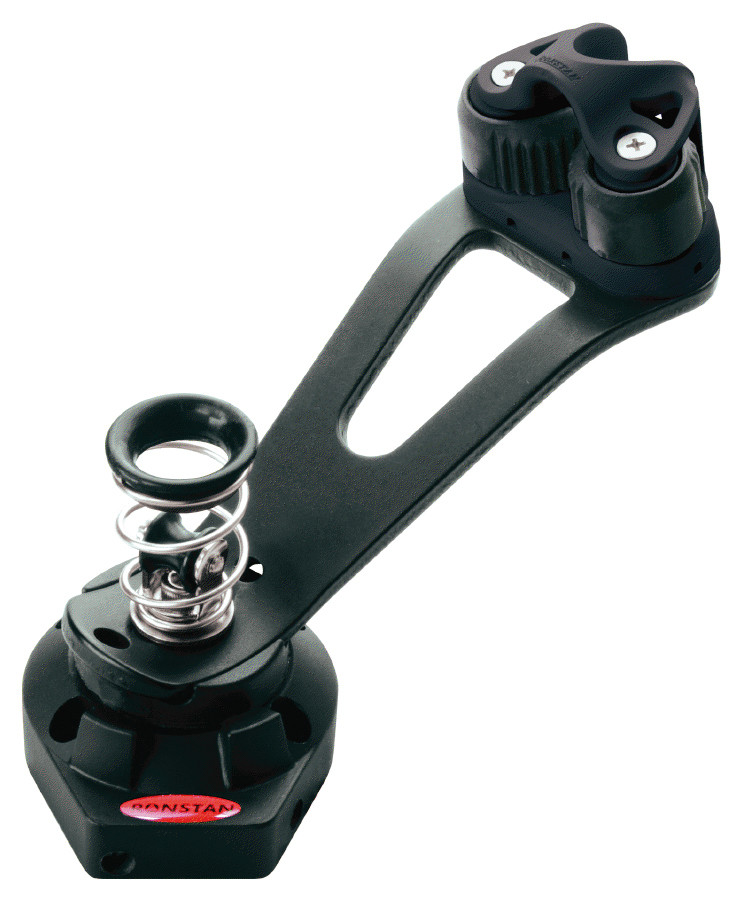

Swivel mainsheet cam unit

Ronstan

Article number :  RF007

https://duvoisin-nautique-et-sports.odoo.com/web/image/product.template/348313/image_1920?unique=c7786d8

127.66 CHF 127.66 CHF 127.66 CHF

138.00 CHF

Contact us for more details

    This combination does not exist.

    RF007

    Black anodized aluminum arm. The arm rotates freely thanks to the double ball bearing. An adjustable spring mechanism in the base keeps it in a desired position. The unit can be rotated 260° or 360° if the stop is removed.

    - Supplied with C-Cleat carbon fibre locking cleat
    - Height adjustable with three different angles to allow the use of pulleys from 50 to 70 mm and to choose the ideal angle of the sheet

    For ropes up to: ø 12 mm
    Height: 160 mm
    Base: 69 x 79 mm
    Screw fixing: ø 4 x 5 mm

    Height adjustable arm
    Twin ball bearing race
    Adjustable ratchet system

    M.W.L. 260 kg
    B. L. 520 kg
    Weight 342 g
