Overall length: 38mm
Sheave Ø 20 mm
Max. Rope Ø 6 mm
Max. Cable Ø - mm
Pin Ø - mm
M.W.L. 250 kg
B. L. 550 kg
Weight 16 g
Features
Low friction
High static and dynamic load capacity
Lightweight
Product Information

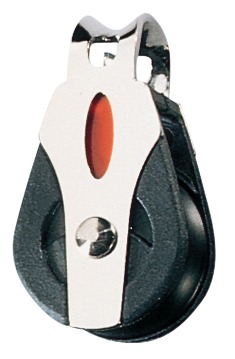

Precision moulded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction.Can be fitted with a shackle in either of two planes to allow correct alignment of the block.
Applications
Dinghy control lines
Dinghy vangs
Cunninghams
Traveller controls
Materials
Stainless steel ball bearings
UV stabilised Acetal sheave
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fibre reinforced Nylon cheeks
