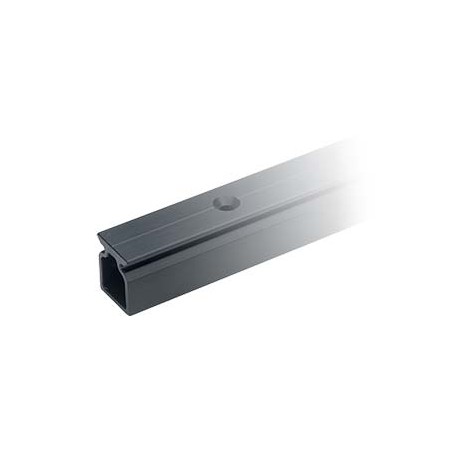

Specifications for Track high-beam profil 22mm
| Length | 100 cm or 120 cm or 150cm |
Track is extruded from high-grade 6061-T6 aluminum and hardcoat-anodized for a hard, long-lasting surface.
CB (Captive Ball) high-beam variable hole spacing track is used to span cockpits or other unsupported areas. Track features internal slide bolts, allowing new track to be installed without drilling additional holes.
Length (m) 1 m
Weight (g) 586 g
Fasteners (mm) 5 FH mm
Mounting hole spacing (mm) 100 mm
Low-load endstop 174
High-load endstop 264
Trim cap 2723
Length (m) 1.2 m:
Weight (g) 695 g
Mounting (mm) 5 FH mm
Wheel spacing (mm) 100 mm
Low load end caps 174
High strength nozzle 264
End caps 2723
Length (m) 1.5 m
Weight (g) 879 g
Mounting (mm) 5 FH mm
Hole spacing (mm) 100 mm
Low load end caps 174
High strength nozzle 264
End caps 2723
