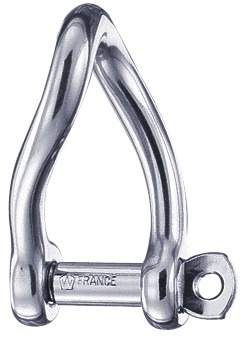

Shackle twisted self-locking stainless steel round 6mm View larger

10.00 CHF

Delivery in ~1-3 day(s)

Shackle twisted self-locking stainless steel round 6mm

Wichard

WI1223

Features
Weight 27 g
Working load 600 Kg
Breaking load 1500 Kg
A 30 mm
B 12 mm
Diameter 6 mm

Commentary
Self-locking twisted shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads

Applications
Perfect for application where a 90° angle twist setup is required
Often used to attach an unarticulated part (block on a rail) or on purchases

Material
Grade 316L stainless steel

The self-locking axle ensures and reassures. Indeed, thanks to the elasticity of the shackle body, the head and shaft rotate in a series of successive notches. Once blocked, no more unintentional unscrewing due to vibrations.

Diameter: 5 to 10 mm
Breaking load: 1100 to 4500 kg
