Shackle twisted captive pin stainless steel round 5mm View larger

13.00 CHF

Delivery in ~1-3 day(s)

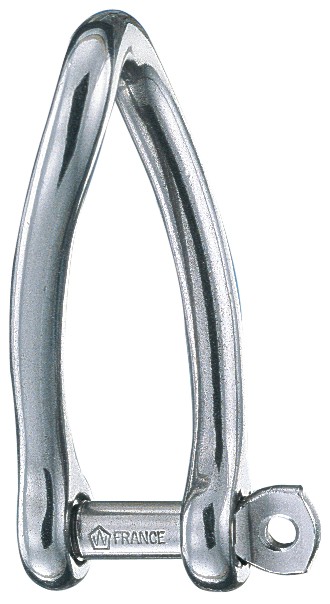

Shackle twisted captive pin stainless steel round 5mm

Wichard

WI1422

Features
Weight 23 g
Working load 480 Kg
Breaking load 1500 Kg
A 37 mm
B 10 mm
C 6 mm
Diameter 5 mm

Commentary
Captive pin twisted shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
le manillon ne peut se perdre
Single handed operation for more safety

Applications
Perfect for application where a 90° angle twist setup is required
Often used to attach an unarticulated part (block on a rail) or on purchases

Material
Grade 316L stainless steel
